KONFIGURASI INTERNET GATEWAY (NAT)

 TOPOLOGI




ALAT DAN BAHAN

  • Internet

  • PC/ Laptop

  • RB Mikrotik

  • Kabel Stright



LANGKAH-LANGKAH KONFIGURASI NAT

  1. Jalankan Aplikasi Winbox

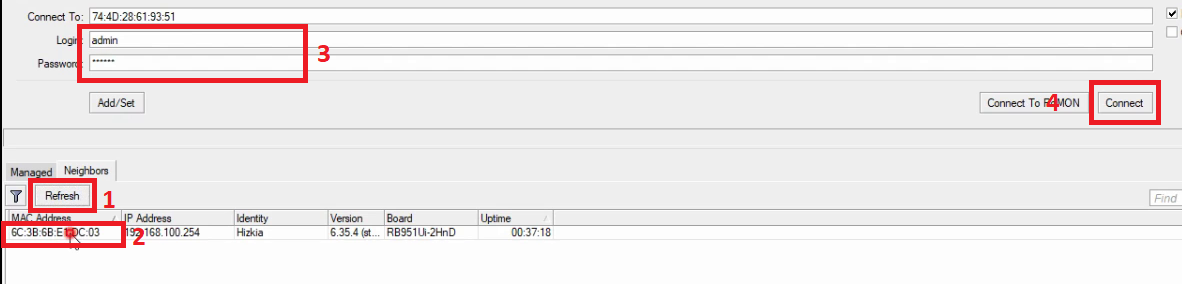

  1. Jalankan Aplikasi Winbox 🡪 Neighbors 🡪 Refress hingga muncul router 🡪 Klik Mac Address 🡪 Isi Login: admin/ Password: kosong 🡪 Connect


  1. New terminal 🡪 ketik: “system reset” 🡪 Enter 🡪tekan tombol “y” pada keyboard, Router akan tereset🡪 tunggu beberapa saat hingga indicator lampu router menyala.



  1. Reconnect 🡪“remove configuration”

C:\Users\TKJ\Pictures\Remove Configuration.png

  1. Reconnect 🡪 system 🡪 identity 🡪 ganti nama: misal=Kelompok-1 🡪 Apply 🡪 Ok


C:\Users\TKJ\Pictures\System Identity.png

  1. Interfaces 🡪 ubah nama interfaces

  • Ether1= ether1-internet 🡪 Apply 🡪Ok

C:\Users\TKJ\Pictures\IP Address 1.png

  • Ether2= ether2-lan 🡪 Apply 🡪Ok


  1. IP 🡪 DHCP Client 🡪 +

  • General :

  • Interface: ether1-internet 🡪 Apply 🡪 Ok

C:\Users\TKJ\Pictures\DHCP Client.png

  • Tunggu hingga status “bound”

 C:\Users\TKJ\Pictures\DHCP Client 2.png

  1. IP  🡪 Address  🡪 +

  • Address: 192.168.100.254/25

  • Interface = ether2-lan  🡪 Apply  🡪 Ok


  1. IP 🡪dhcp Server🡪DHCP Setup

  • Pilih Interface: ether2-lan🡪 Next

C:\Users\TKJ\Pictures\DHCP Server.png

  • Next sampai complete

  • Klik 2 kali dhcp1 🡪Ganti namanya menjadi dhcp1-lan🡪Cheklis “Add ARP For Leases” 🡪 Apply  🡪 Ok

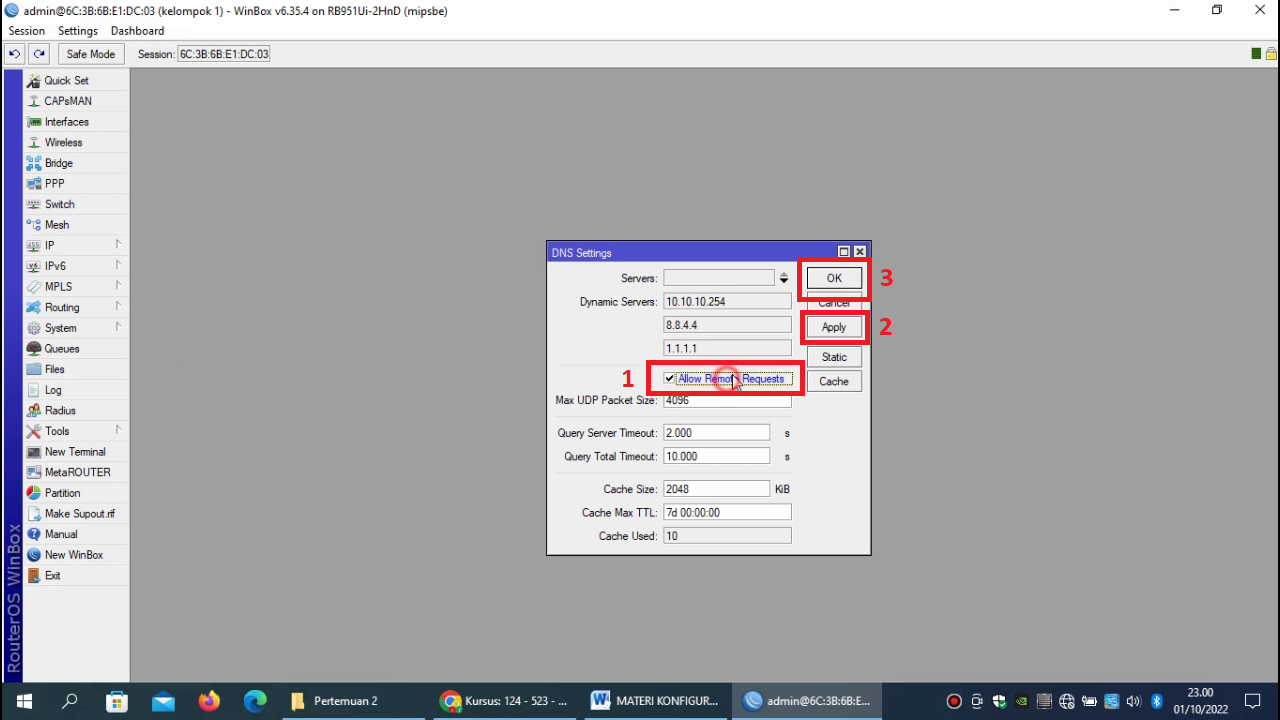

  1. IP  🡪 DNS

  • Cheklist“Allow Remote Request”🡪 Apply  🡪 Ok

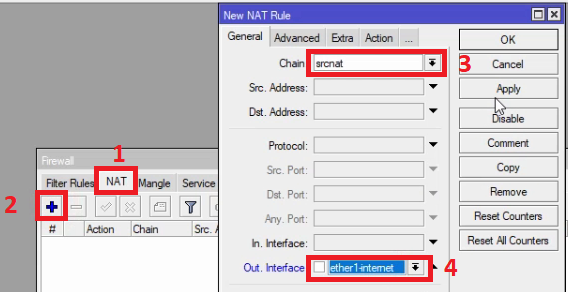

  1. IP 🡪Firewall  🡪 NAT  🡪 +

  • Tab General:

  • Chain: srcnat

  • Out Interface: ether1-internet 🡪 Apply

C:\Users\TKJ\Pictures\NAT 1.png

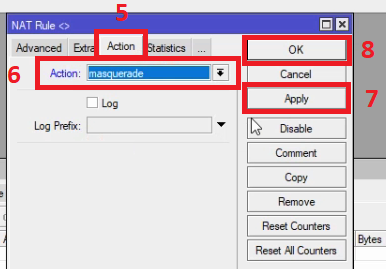

  • Tab Action

  • Action: Masquerade  🡪 Apply  🡪 Ok

C:\Users\TKJ\Pictures\NAT 2.png

  1. System 🡪 Reboot 🡪 Yes


Untuk lebih jelasnya bisa lihat video dibawah ini:


Untuk materi pembelajaran bisa didownload pada link dibawah ini:
